Maximum Workpiece Diameter: 49.210in/1250 mm

Minimum Workpiece Diameter: 55.120in/1400 mm

Spindle Taper: BT50

Maximum Speed: 1000rpm

Spindle Tilt (B Axis): 150 Degrees

Table Indexing (C Axis): 360.0000 Degrees

Travel (X Axis): 56.10in/1425 mm

Capacity: Table Right/Left - 68.500 in / 1740 mm

Table Longitudinal - 29.530 in / 750 mm

Spindle Taper: BT50

Maximum Speed: 1000rpm

Number of Tools: 30

Feed Axes: Travel (X Axis) - 59.06 in / 1500 mm

Travel (Y Axis) - 31.50 in / 800 m

Travel (Z Axis) - 25.98 in / 660 mm

Speed: 12000 rpm - 15000 rpm

Output (40% ED): 11 kW (15 HP) - 46 kW (62 HP)

Max. torque (40% ED): 70 N・m - 200 N・m

Tool shank: BT-40/BBT-40/HSK-A63 - BT-40/BBT-40/HSK-A63

SPINDLE SPEED RANGE: 12000 1/MIN

SPINDLE MOTOR POWER: 14.5 KW

TOOL TAPER: SK40

NUMBER OF AXIS: 3

X-AXIS MOVEMENT: 1150 MM

OUTER LENGTH: 1400 MM / WIDTH: 750 MM

X-AXIS RAPID TRAVERSE: 36 M/MIN

TABLE LOAD: 1500 KG

MAX TOOL DIAMETER: 80 MM / LENGTH: 300 MM

SPINDLE SPEED RANGE: 24000 1/MIN

NUMBER OF AXIS: 5

X-AXIS MOVEMENT: 800 MM

Y-AXIS MOVEMENT: 1050 MM

Max. X-axis stroke: 600mm

Max. Y-axis stroke: 560mm

Max. Z-axis stroke: 510mm

Max. Workpiece height: 630mm

Max. Workpiece weight: 600kg

Max. Workpiece length: 900mm

Max. Workpiece width: 600mm

Travels: X 1.000Y 800Z 500mm

Control: Dialog 112

Arbeit Tisch: 1.250 x 800 mm

Feed: X,Y,Z 1 – 10.000 U/min

Weight: 9.100 kg

Machine Measurements: 3,7 x 3,7 x 3,0 m

Main spindle: 8.000 U/min

Travel (X/Y/Z) : 6500/500/280mm

Spindle Speed Range : 200-40,000min-1

Spindle Taper Hole : HSK-E32

ATC : 32 tools

NC Unit : FANUC 31i-B5 Plus

switch-on time: 33953h / cutting time: 7897h

working table size: 850x630mm / maximum table load: 600kg

X axis travel: 640mm / Y axis travel: 600mm / Z axis travel: 500mm

Maximum feed speed: 40m/min / Maximum feed force: 7000N

Accelerated feed X, Y, Z: 60, 40, 40 m/min

Spindle speed: 12000 1/min / Tool taper: SK 40

Number of tools (magazine): 30 / Cooling through spindle: 20bar

X/Y/Z axis travel (mm): 400 x 300 x 270

Table dimensions (W x D, mm): 600 x 400

Work tank dimensions (W x D x H, mm): 750 x 620 x 350

Work tank fluid level (Min. to Max., mm): 100 ~ 300

Max. workpiece weight (kg): 550 / Max. Weight of electrode(kg): 50

Distance from floor to table top (mm): 830

Machine dimensions (WxDxH,mm): 1662x2490x2330 / Machine weight (kg): 4100

Air pressure: 0.65 / Step resolution(mm): 0.0001 / Controlled axis: 4

X/Y/Z axis travel (mm): 600 x 420 x 370

Table dimensions (W x D, mm): 750 x 550

Work tank dimensions (W x D x H, mm): 950 x 740 x 450

Work tank fluid level (Min. to Max., mm): 150~400

Work tank inner size (W x D): 850 x 610mm

Max.size of workpiece(WxDxH) - Submerge: 600x470x230mm

Max. size of workpiece (WxDxH) - Flushing: 600x470x240mm

Max. weight of workpiece – Submerge: 350 kg / Flushing: 500 kg

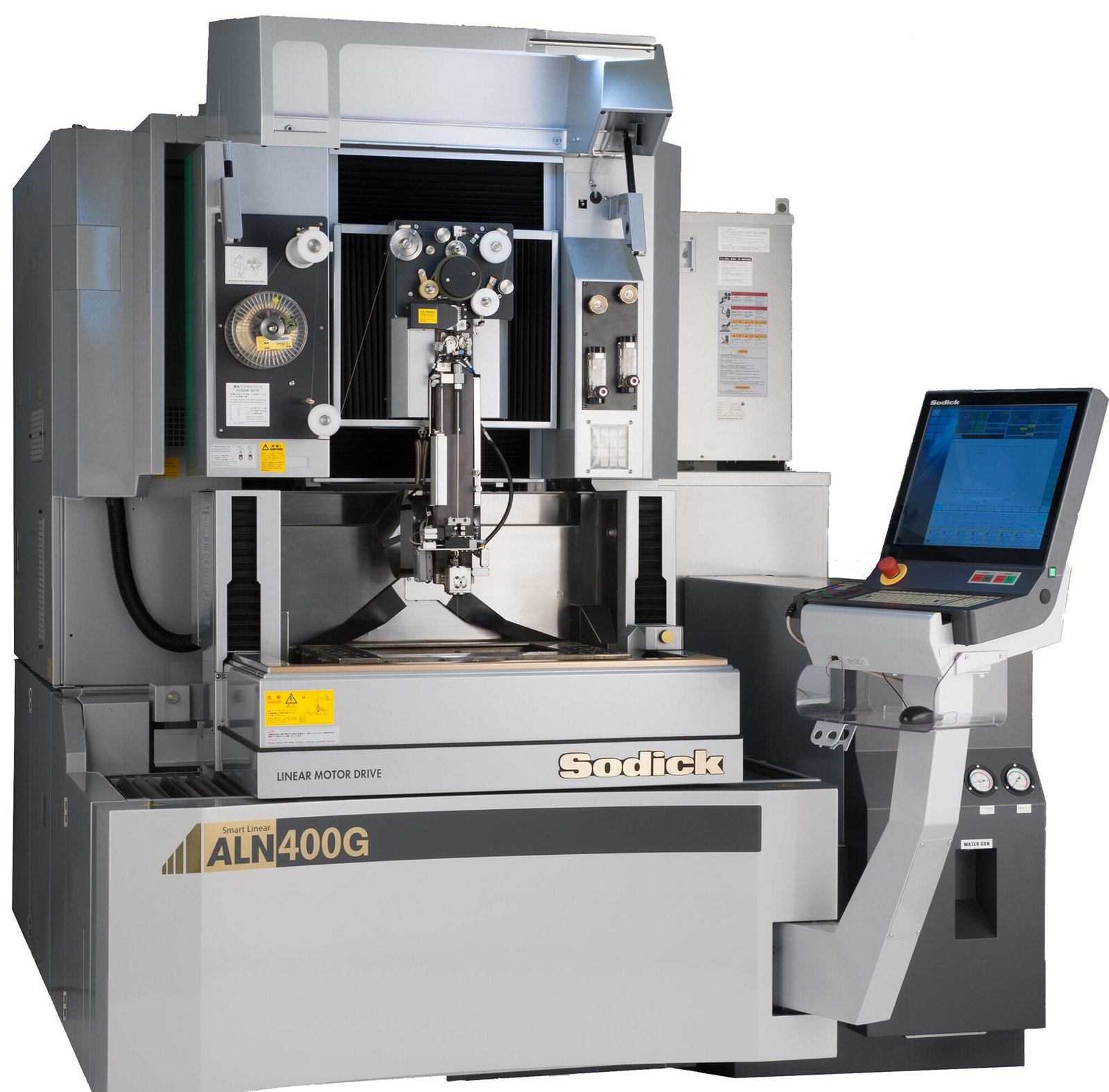

Axis travel (XxYxZ): 400x300x250mm / Auxiliary table travel (UxVaxis): 150x150mm

Wire diameter: Ø0.10-Ø0.3mm / Taper angle/thickness: ±25°/130mm

Machine tool dimensions (W x D x H): 2190x2425x2205mm

Machine tool weight (without Dielectric Tank): 3200kg

Power consumption (3Ph. 50/60Hz): 13kva / Dielectric fluid capacity: 675L

Xaxis travel: mm 2050 / Yaxis travel: mm 550 / Zaxis travel: mm 560

Spindle center to column: mm 638

Spindle nose to table surface:mm 180 ~ 740

Table work area: mm 2500 x 550

Dimension of T-slot: mm 5x18x100 / Max. table load: 1200kg

Spindle taper: BT-40 / Spindle motor cont 30 10minkW 7.5 11 15 (opt.15/18.5)

Spindle speed: 12000rpm

Turning length: 520mm / Turning: 230mm

Above the bed: 520mm / Length between centers: 635 mm

X-axis: 190mm / Z-axis: 600mm

Spindle bore: 75mm / Number of turrets: 12

Turning speed: 3500 rpm / Spindle motor power: 18.5 kW

Controlled Axes 2 Axes (X, Z)

Machine Lock All Axes / Each Axis

Least Input Increment 0.001mm / 0.0001inch / 0.001deg.

Max, command value ±99999.999mm (±9999.9999in)

Fine Acceleration & Deceleration Control Std / HRV Control Std

Inch / Metric Conversion Std. (G20/G21) / Interlock All Axes / Each Axis / Cutting Block Start

Simultaneous Controlled Axes Position / Linear interpolation / Circular interpolation (2/2/2)

X Axis: 20"508mm / Y Axis: 16"406mm / Z Axis: 20"508mm

Length: 26"660mm / Width: 14"356mm

T-Slot Width: 5/8"16mm / T-Slot Center Distance: 4.92"125.0mm

Number of Std T-Slots: 3 3

Max Rating: 30hp 22.4kW / Max Speed: 8100 rpm

Rapids(X): 1000in/min 25.4m/min / Rapids(Y): 1000in/min 25.4m/min

Rapids(Z): 1000 in/min 25.4 m/min

Max Thrust(X): 2550lb 11343 N / (Y): 2550lb 11343N / (Z): 4200lb 18683N

Capacity : Max. depth of drilling: 1,200mm / Range of drilling diameter: Ø3 ~ Ø32mm

Spindle : 1NO / Max. Speed: 6,000 rpm / Output power: 7.5kw

Axis : X-Axis: 1,000mm / Y-Axis: 800mm / Z-Axis: 1,200mm / W-Axis: 400mm

Working Table Stroke : Worktable dimensions: 1,000 x 1,200mm / Max. loading weight: 5,000kgs

Layout Dimensions : Net weight: 13,000kgs / Dimensions (LxW) : 7,000 x 4,500 mm

X-axis travel : 3,000 ~ 7,000mm

Y-axis travel : 2,400 ~ 3,900mm

Z-axis travel : 760 ~ 1,000mm

Dist. between columns : 2,300 ~ 3,500mm

Table size ( X direction ) : 3,020 ~ 7,020mm / 2,010 ~ 3,010mm

Spindle speed : 4,000 ~ 6,000rpm

Spindle motor ( cont. / 30 min. ) : 22 / 26 kW

Tool magazine capacity : 32 T

Machine travel: X800 x Y600 x Z310 mm / Machine travel: U±75 x V±75 (mm)

Max. work-piece dimensions: W1250 x D1020 x H305 mm / Max. work-piece weight: 1500kg

Motor system: [axis] XY-UV axis LSM-OPT drive / Wire diameter range: 0.1 to 0.3 mm

Max. taper angle (Degree): 15⁰@260mm, 30⁰@110mm / Unit weight: 5800kg

Dielectric fluid tank capacity: 1100L / chiller unit: In-build unit cooler

Max. output current(A): 50.0 / Power requirement(kVA): 13.5

User memory capacity(GB): 1 / On board CAD/CAM: Available,2D CAM MAGIC

OD 50.8mm, 4 Axis + Draw + Roll + 1D Tube Bender

Programmable carriage boost for CLR = 1D Bending

Special bending compensation and data storage fields

Low noise level with highest transmission performance

Sheet-W: 60"

Sheet-L: 120"

Wattage: 10000w

IPM: 6141 ipm

X: 120"

Y: 60"

Maximum length of incoming sheet (mm): 1575 / width(mm): 1000

Maximum diagonal that can be rotated (mm): 1600

Maximum bending force(kN): 90 / clamping force(kN): 310

Maximum bending length(mm): 1250 / height(mm): 127 / Minimum thickness(mm): 0.4

Maximum thickness and bending angle stainless steel, UTS 660N/mm2(mm): 1.30(±90°) 1.10(±120°)

Maximum thickness and bending angle steel, UTS 410N/mm2(mm): 1.60(±90°) 1.30(±130°)

Maximum thickness and bending angle aluminium, UTS 265N/mm2(mm): 1.60(±120°) 1.10(±130°)

Average consumption(kW): 3.0 / Noise level (Machine Directive 2006/42/EC)(dB): 64

Tonnage: 229.518 t

Type: HYD

Overall Length: 3.2 m

Between Housings: 2.7 m

Control: CNC (TASC 6000)

Tonnage: 85.275 t

Type: HYD

Overall Length: 2.2 m

Between Housings: 1.8 m

Stroke: 444.5 mm

Control: CNC (TASC 6000)

Travels: 15.1” 12.5” 8.6” 230° 360°

Fluting: 8' / Position Feedback Resolution: 0.0000039”

Programming Resolution: 0.000039” / Software Axes: B, V, U, W

Max Tool Diameter: 7.8” / RPM: 10,000

Spindle Power: 9.5 KW 12.7 HP / Type: ANCA Bi-Directional / Drive: Integral Direct Drive

Nose Taper: HSK 40F / Max. Wheel Diameter: 8” / Wheel Packs: 2 With Auto Spindle Changing

Electrical Power: 14.5 KVA / RAM: 8 GB / Maximum Weight: 44 Lbs

Processor Pentium 4: 2.8 Ghz / MB: 512 / Floor Layout: 76" x 70" x 71"

Plasma volume: dia 650 mm, height 600 mm

Compact size: L x W x H = 3.2 x 1.6 x 2.1 m

Minimal floor space requirement = 5 x 4 m

Linear Positional Accuracy. ± .025 mm.

Rapid Traverse Maximum. 17.8 m/min.

Acceleration. 0.1 g.

Repeatability. ± .020 mm.

Ballbar Circularity. ± 0.0635 mm.

Z-Axis Travel. 305 mm, 610 mm.

Work Envelope. Mach 500 2020: 2mx2m. Mach 500 3020: 3.05mx2m. Mach 500 3060: 3.05mx6m. Mach 500 4020: 4mx2m.

Linear Positional Accuracy: ± .038 mm.

Rapid Traverse Maximum: 11.9 m/min

Acceleration: 0.075 g.

Repeatability: ± 0.025 mm

Ballbar Circularity: ± 0.076 mm

Z-Axis Travel: 305 mm

Work Envelope: Mach 300 2015: 2m x 1.5m. Mach 300 3015: 3m x 1.5m.

Number of axes: 5

Z-axis stroke (mm): 450

C-axis head rotation (°): -5° / 360°

A-axis blade inclination (°): 0 -90°

Workbench dimensions (mm): 3800 x 2450

Max cutting depth (mm): 200

Electrospindle motor power (kW): 11S1 / 13S6
